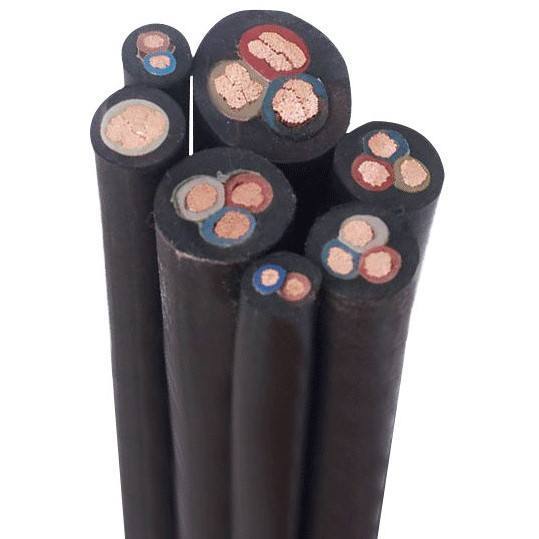

Corrosion Resistance Rubber Jacket Copper Core Power Cable Flexible Electric Wire for Outdoor Use
Corrosion Resistance Stranded Copper Conductor EPR Insulation Rubber Sheath Flexible Power Cable Wire for Outdoor and Emergency Use. Rubber Sheathed cables are movable cables made with rubber as the insulating and sheathing material, characterized by their softness and durability.
Product Specifications
- Conductor: Stranded Copper Core - multi-strand structure enhances flexibility for bending, dragging and threading
- Insulation: EPR (Ethylene Propylene Rubber) - excellent insulation with oil and moisture resistance
- Sheath: Rubber with wear resistance, oil resistance and weather resistance properties
- Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Size: 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm and more
- Filler: Rope
- Special Features: Movable, Flexible, oil resistance, wear resistance, small bending radius, tensile resistance
Applications
This flexible rubber cable offers superior wear resistance, oil resistance, weather resistance, high temperature resistance, and mechanical damage protection, making it ideal for various complex electrical environments.
- Industrial sector: Power supply for mobile devices including construction machinery (excavators, cranes, concrete pump trucks) and industrial automation equipment (machine tools, conveyor belts, robot drag chain systems)
- Agricultural sector: Power lines for agricultural machinery (harvesters, tractors) and agricultural electrification scenarios
- Construction sector: Temporary power distribution for construction site equipment, lighting, and vibration rods
- Special environments: Port/ship shore power connections, outdoor installations (street lamps, billboards), high-temperature areas (metallurgical furnaces, boiler rooms with silicone rubber sheath variants)
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
| Product Name | H07RN-F Rubber cable |
| Brand | Ke Fei Te |
| Model | YC/H07RN-F |
| Conductor Material | pure copper conductor (Multiple strands of fine copper wire twisted together) |
| Insulation Material | EPR(Ethylene-Propylene Rubber |
| Jacket | General Rubber Sheath |
| Color | Black |
| Shape | Round wire |
| Feature | Flexible, oil resistance, wear resistance, corrosion resistance,soft and tensile resistance |
